Air Lift Suspension Bellow Truck Air Springs Firestone W01-358-9875 Air Bag
Product Details:
| Place of Origin: | China |
| Brand Name: | Tech Master |
| Model Number: | Firestone W01-358-9875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Price is Negotiable |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 3-7 working days after received your payment |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 3,000pcs per month |
|
Detail Information |
|||
| Material: | Rubber Snd Steel | Part No.: | W01-358-9875 |
|---|---|---|---|
| Car Make: | HENDRICKSON | Condition: | Brand New |
| Warranty: | 1 Year | Type: | Truck Air Supension |
| Delivery: | 3-7 Working Days After Recieved The Payment | ||
| Highlight: | truck air suspension,truck suspension air bags |
||
Product Description

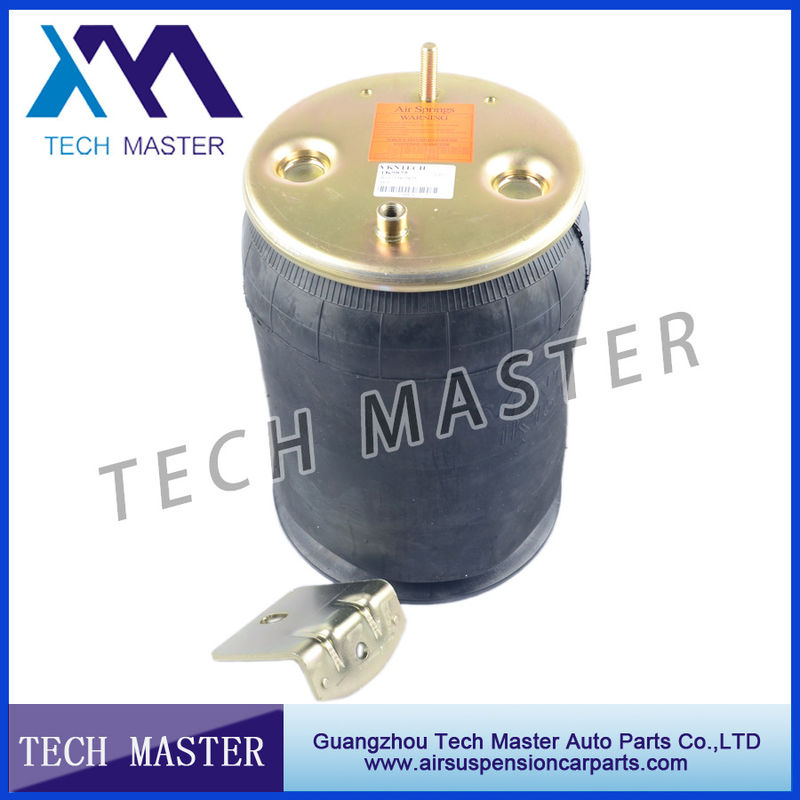

Air Lift Suspension Bellow Truck Air Spring Firestone W01-358-9875 Air Bag
Production Description
truck air spring
Firestone: W01-358-9875
|
Type |
Truck Air Springs |
| Firestone | W01-358-9875 |
|
Meterial |
Rubber + Steel |
|
Size |
OEM Standard |
|
Warranty |
12 Months |
Rolling lobe air springs with metal parts are mostly used in trucks and trailers.
Rolling lobe air springs with metal parts are also used in some types of busses.
Besides, they are used as a third axle spring or lifting spring in some vehicles.
Compared to the rolling lobe air springs (air springs without top plate), they are used especially in heavy load transportation.
Loading capacity of air spring can go up to several tons and can operate at up to hundreds mm operation height.
The Benefits of Air Spring
1. Eliminate Squat
Is the rear end of your vehicle sitting low from a heavy load? This is called squat or sag. Lift it back up where it belongs and enjoy the benefits listed below. This is especially beneficial while towing: adjust the air springs to accept the tongue weight of the trailer.
2. Reduce Poor Braking and Steering
The two front tires bear the majority of braking and steering. Air spring ensures that weight is properly distributed to all four tires for optimal braking and steering.
- Long lasting service on almost all truck and trailer air suspensions
- Absorb road shock to help tractors and rigs last longer
- Cut down on vibration and driver fatigue
- Long, trouble free service, constant level hauling, quite cushioned ride
Warning and Tips
Maintenance of the air springs, Vehicle Check-List
- Check the air lines and devices of leakage and that they turns freely.
- Check the bellows bearing for damage, correct fastening, deformation, sharp edges.
- Check the shock absorbers for operation and impermeability as well as tightness and bearing.
- Periodically, check nuts and bolts for proper torque. For specific recommendations see manufacturer's manual.
- Check axle suspension, trailing arms and rods for wear.
- Check height control valve to see that it is functioning properly. A properly maintained valve will save unneeded maintenance expense.
- Routine inspection of all of the above according to manufacturer's instructions, will extend the life of your vehicle and reduce your overall maintenance expense.
Air Spring Installation
- Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
- Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
- If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
Important tips to remember when installing a new unit
- Check levelling valve, linkage and transmission parts for wear and damage and if necessary replace the damaged parts.
- Check that the shock absorber for leakages and take a shock absorber test. A defective shock absorber must be replaced.
- Once the air lines are disconnected, check their entire length for cracks or other damage. Replace worn parts.
- With the air spring removed, other parts of the air suspension become more accessible. Check for wear or damage of the frame hangers, trailing arm bushings, torque rods, the trailing arms and the air spring mounts. When it is necessary, also replace parts.
- Check bearing for air spring bellow for external damage, deformation, sharp edges and correct fastening.
- Before installing the new unit, clean the air spring mounting plates to ensure proper attachment to the suspension.
- Always use new attaching bolts for the installation and observe the tightening torques. Never use old bolts, because these can fall out.
- Check the linkage of the levelling valve to see that it is functioning properly. Under load, the linkage should move from the neutral position up to the intake position. This lets air into the springs, which brings the arm back to the neutral position. This lets air into the springs, which brings the arm back to the neutral position. That opens the exhaust valve, allowing air to escape until the arm returns to the neutral position. Then check the driving level.
